What units are supported for flange bushing volume calculation?

The calculator supports mm, cm, m, in, ft for dimensions and automatically converts between volume units (mm³, cm³, m³, in³, ft³).

How to calculate the weight of a flange bushing?

Weight = Volume × Density. You can select the material or enter a custom density to get the weight result in g, kg, lb, or tonne.

Calculate flange bushing volume and weight with multiple input modes, supporting various units and materials.

Input

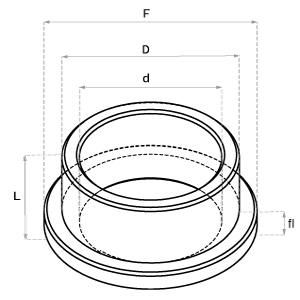

Inside diameter d, Outside diameter D, Flange Diameter F, Flange Thickness fl, Total Length L

Inside Diameter d

Outside Diameter D

Flange Diameter F

Flange Thickness fl

Total Length L

Quantity

Material

Density

Weight

$$V = \frac{\pi}{4} (D^2 - d^2) L + \frac{\pi}{4} (F^2 - D^2) fl$$

Where V is volume, π ≈ 3.14159, D is outside diameter, d is inside diameter, F is flange diameter, fl is flange thickness, L is total length

How to calculate the volume of a flange bushing?
Volume = (π / 4) × (D² - d²) × L + (π / 4) × (F² - D²) × fl, where D is outside diameter, d is inside diameter, F is flange diameter, fl is flange thickness, L is total length.
What units are supported for flange bushing volume calculation?
The calculator supports mm, cm, m, in, ft for dimensions and automatically converts between volume units (mm³, cm³, m³, in³, ft³).
How to calculate the weight of a flange bushing?
Weight = Volume × Density. You can select the material or enter a custom density to get the weight result in g, kg, lb, or tonne.
